Summary #
This is the capstone project I completed as part of the requirements for the Machine Learning Operations Zoomcamp, which is a free, online course offered by DataTalks.Club. The course allows you to get familiar with some of the procedures and technologies employed in machine learning opeartions, such as experiment tracking with MLflow, workflow orchestration with Prefect, data monitoring and dashboarding with Evidently AI and Grafana, but also best software practices like unit testing, linting and CI/CD.
The purpose of this project is to predict higher eduction students’ end-of-term performances using machine learning operations techniques. The dataset employed in this MLOps Zoomcamp project is the Higher Education Students Performance Evaluation dataset from the UCI Machine Learning Repository. The paper derived from the dataset is Student Performance Classification Using Artificial Intelligence Techniques.
The dataset includes 145 instances in 31 features. The first ten features of the data regard personal questions, features 11 to 16 regard family questions, and the remaining features are about education habits. The dataset doesn’t contain missing values, and is entirely made of categorical values. The data was collected from the Faculty of Engineering and Faculty of Educational Sciences students in 2019.
Outline #
You may view the Github repository of this project at Machine learning project for evaluating higher education student performance. Here is an outline of the project folder with the work I’ve done for this capstone project.
├── best-practices # Reports & logs for code quality checks
│ ├── integration-test # Integration test folder
│ └── tests # Software test files
├── data # CSV and Parquet data files
├── deployment # Folder for model deploying with MLflow registry & Flask
│ ├── artifacts # MLflow artifacts folder for model registry
│ └── flask-app # Local Flask deployment folder
├── experiment-tracking # Folder for experiment tracking with MLflow
│ └── artifacts # MLflow artifacts folder for model registry
├── models # Folder containing best model & preprocessor
├── monitoring # Monitoring folder for Evidently
│ └── config # Configuration folder for Evidently
├── orchestration # Prefect orchestration folder
├── plots # Exploratory data analysis plots folder
└── screenshots # Screen shots of MLflow, Prefect, Evidently & Grafana
In order to reproduce the outcome of this project, clone this repository locally to your computer and create a Anaconda environment using the environment.yml file with the command
conda env create -f environment.yml
This will create an environment called mlops-zoomcamp where you will have the package versions I used. If not, you can use the requirements.txt file and install the packages using pip install -r requirements.txt. The data itself is saved in the data folder. It is made up of CSV and Parquet files. Moreover, the dataframe makes use of the attribute_names.json file for column naming.
Exploratory data analysis #

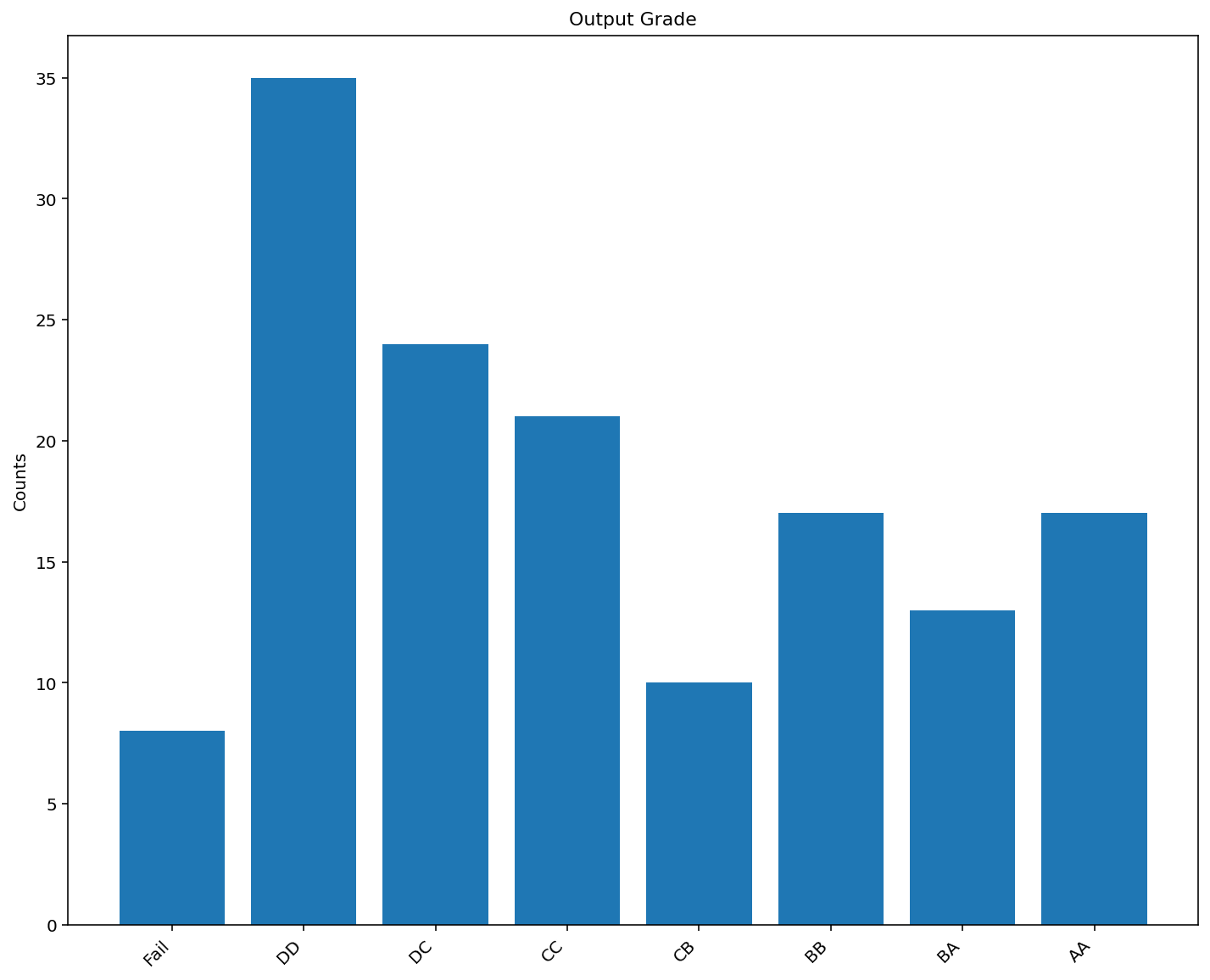

I’ve completed some exploratory data analysis to get a feel for the categorical data set. These results are saved in the plots folder, and have been generated with the eda.py script. Here I show the Grade output category bar plot.
The other plot in the folder shows the bar plot of the other categorical attributes.
Experiment tracking with MLflow #
In the experiment-tracking folder, I’ve implemented MLflow experiment tracking to generate the best model from the data set. I’ve experimented several Scikit-Learn models and one with XGBoost, and decided to settle with the XGBoost model since it returned the best area under the curve (AUC) which is the metric I used to determine the best model. The experimentation search space is saved locally using MLflow.
In order to reproduce the experiment outcome, follow this sequence of commands. Inside the experiment-tracking folder, open a terminal and run:
mlflow ui --backend-store-uri sqlite:///mlflow.db --default-artifact-root artifacts
You can open the MLflow UI in a browser with http://127.0.0.1:5000 and see the experiments listed under higher-education-students-performance-evaluation.

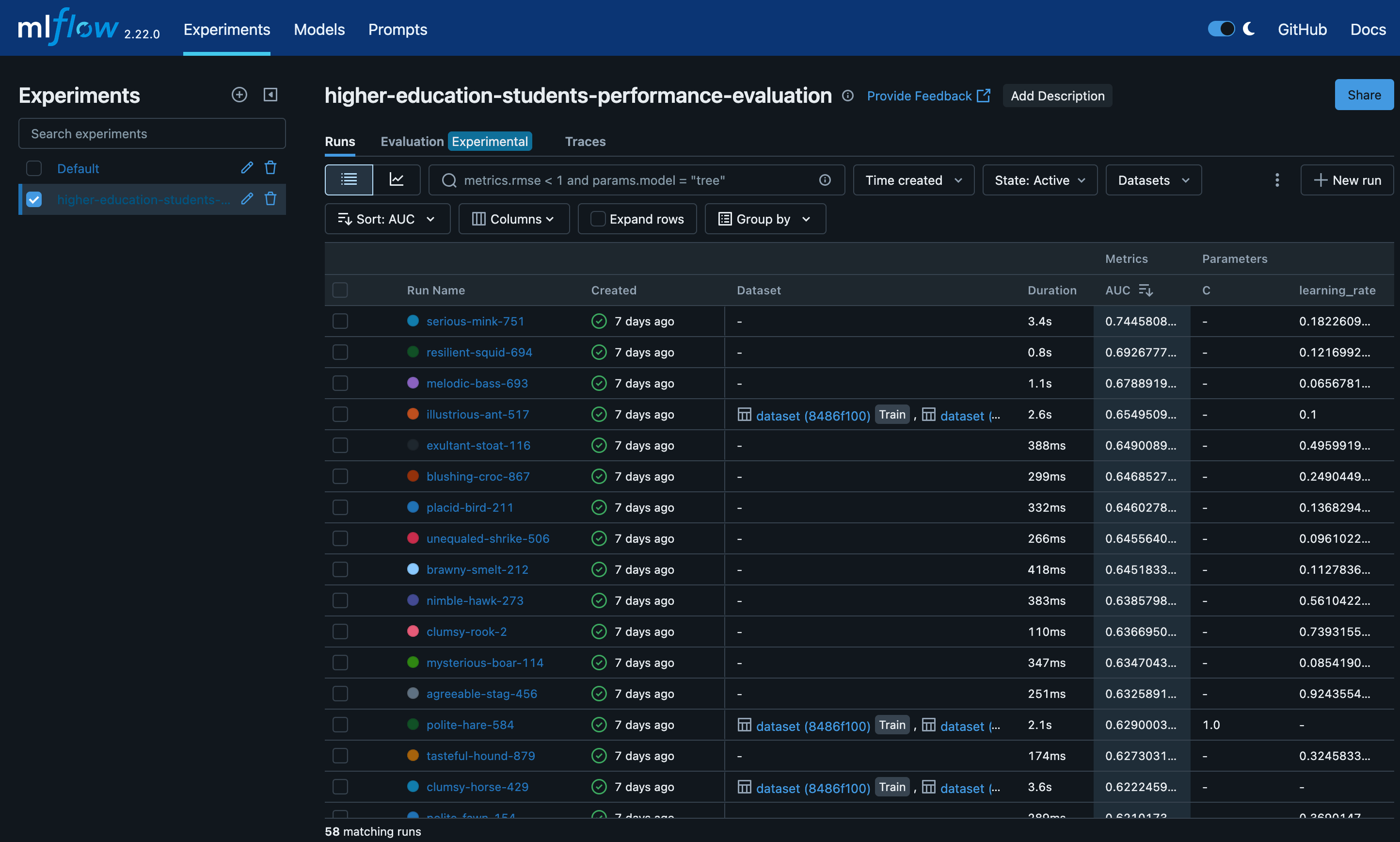

Here is a sample of some of the model experiments saved in MLflow.
If you re-run the experimentation script used previously, you’ll just add the same runs to MLflow. You can try this out yourself by opening another terminal in the same folder and running:
python experimentation.py

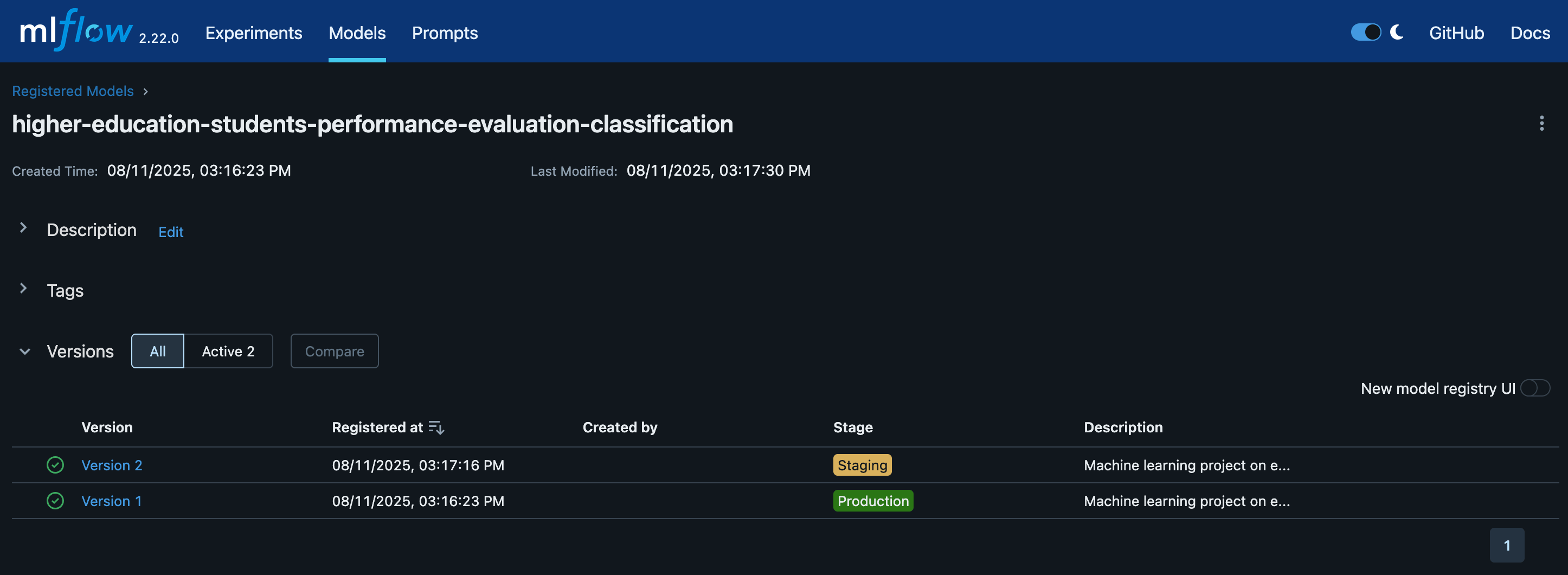

Here are two models saved in the MLflow registry, one to production and the another to staging.
Deployment using MLflow #
You can test the code in the deployment folder by creating an isolated environment with pipenv, using the Pipfile and Pipfile.lock files. Once the environment has been generated, run pipenv shell and run the following command to launch the Flask web service for making predictions:
python predict.py
This script doesn’t require a running instance of the MLflow server, but simply retrieves the registered model from the registry.
In a second terminal and in the same Pipenv environment, run the test.py Python script to test the prediction web service, using new student test data contained in the test script itself:
python test.py
Flask web service #
I wanted to test the predictions of my model using a Flask app. You can find the files for testing in the deployment/flask-app folder. Once you’ve set up a local environment by running pipenv install in the same folder with the Pipfile and Pipfile.lock files, and then running pipenv shell, run python predict.py in one terminal and python test.py in the other folder using the same Pipenv environment.
Orchestration with Prefect #
In this project data pipelines were implemented using the latest version of Prefect, 3.4.11 at this time of this writing. In order to reproduce the workflow, go to the orchestration folder, open a terminal and run the following commands:
prefect server start
The Prefect UI can be accessed locally at http://127.0.0.1:4200. In order for Prefect to communicate with the server, run the following configuration setting in a separate terminal:
prefect config set PREFECT_APT_URL=http://127.0.0.1:4200/api
You may need to initialize a Prefect project, so run prefect init to initialize your deployment configuration with a pre-defined recipe. Use arrows to move to choose the git option deployment, which is what I chose.
For deployment on a local server, you need to create a Prefect worker to poll from the work pool. In order activate the Prefect worker, run in the same terminal:
prefect worker start --pool "hespe-pool"
This will output a message of a running worker with its ID. In my case I had:
Discovered type 'process' for work pool 'hespe-pool'.
Worker 'ProcessWorker ddd94b59-d586-46c0-a31c-77d040b3fef7' started!

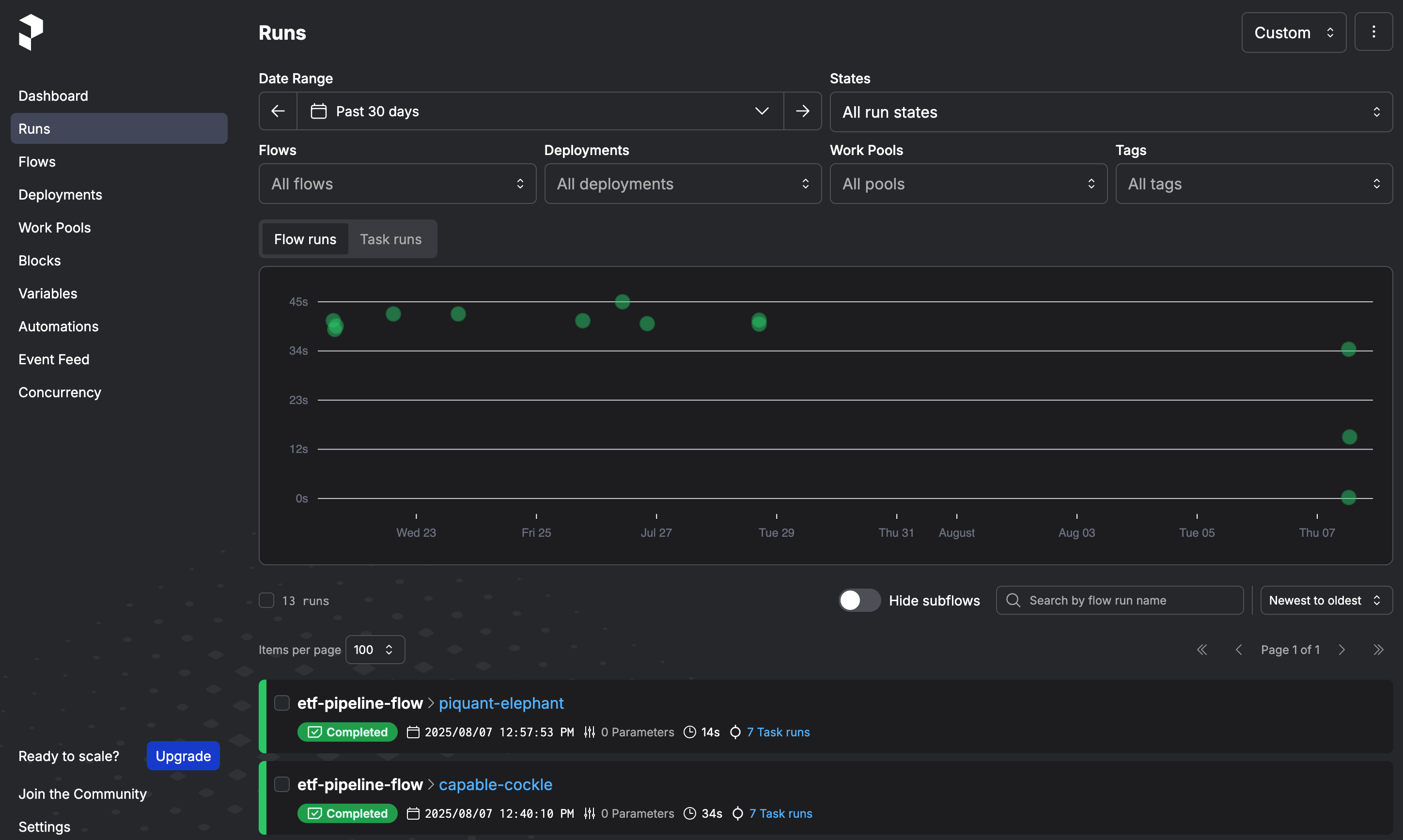

Here are some runs I've generated in the past 30 days and saved in the Prefect Runs tab.

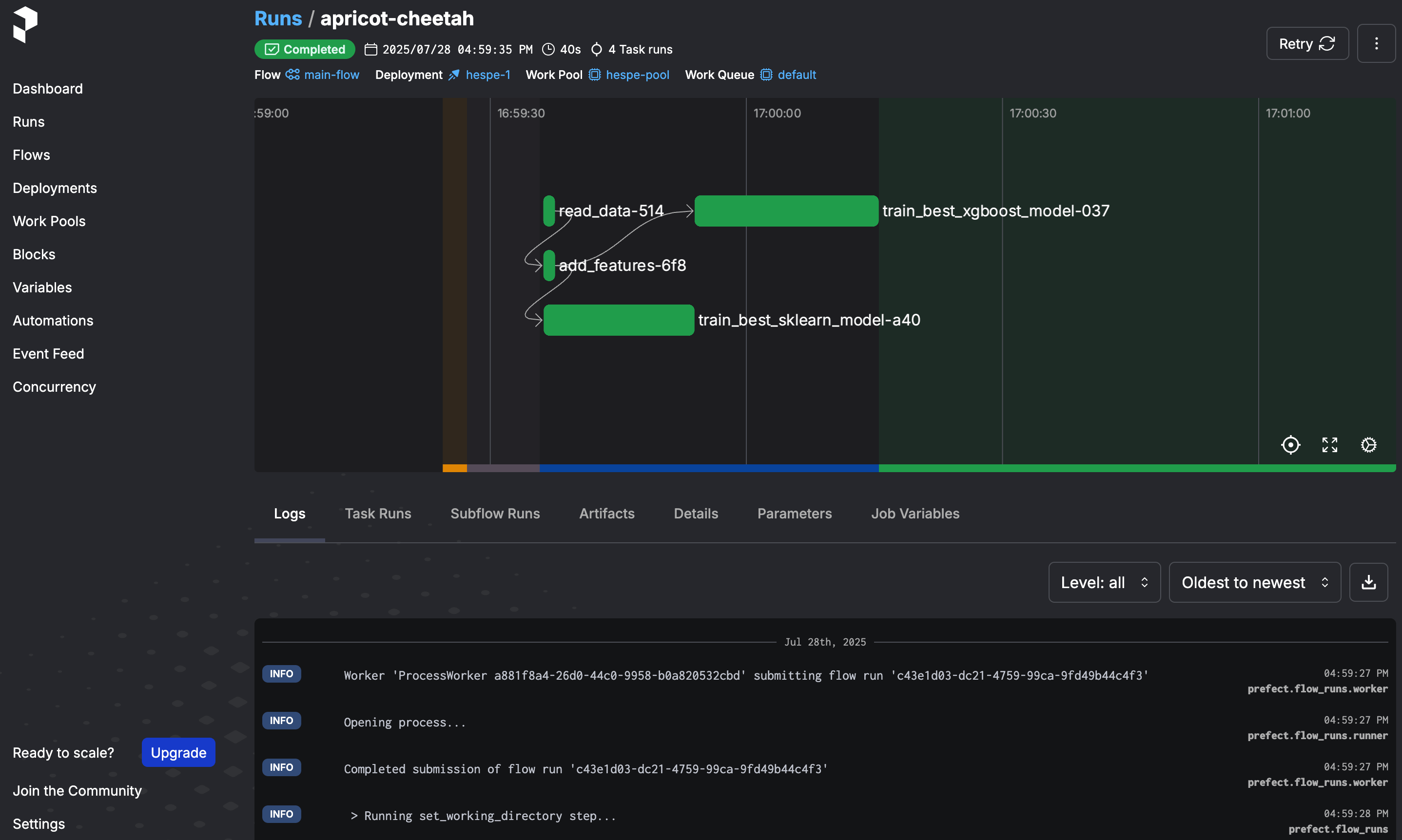

Here are the data preparation and model generation tasks of a run, as shown in Prefect.
The Prefect run in the image above shows the read_data, add_features, train_best_xgboost_model and train_best_sklearn_model tasks. Finally in a third terminal to deploy the flow, run:
prefect deploy orchestration.py:main_flow -n hespe-1 -p hespe-pool
You’ll see the hespe-1 pool activate the orchestration.py flow automatically, and you’ll be able to observe the task and flow outputs in the Prefect UI.

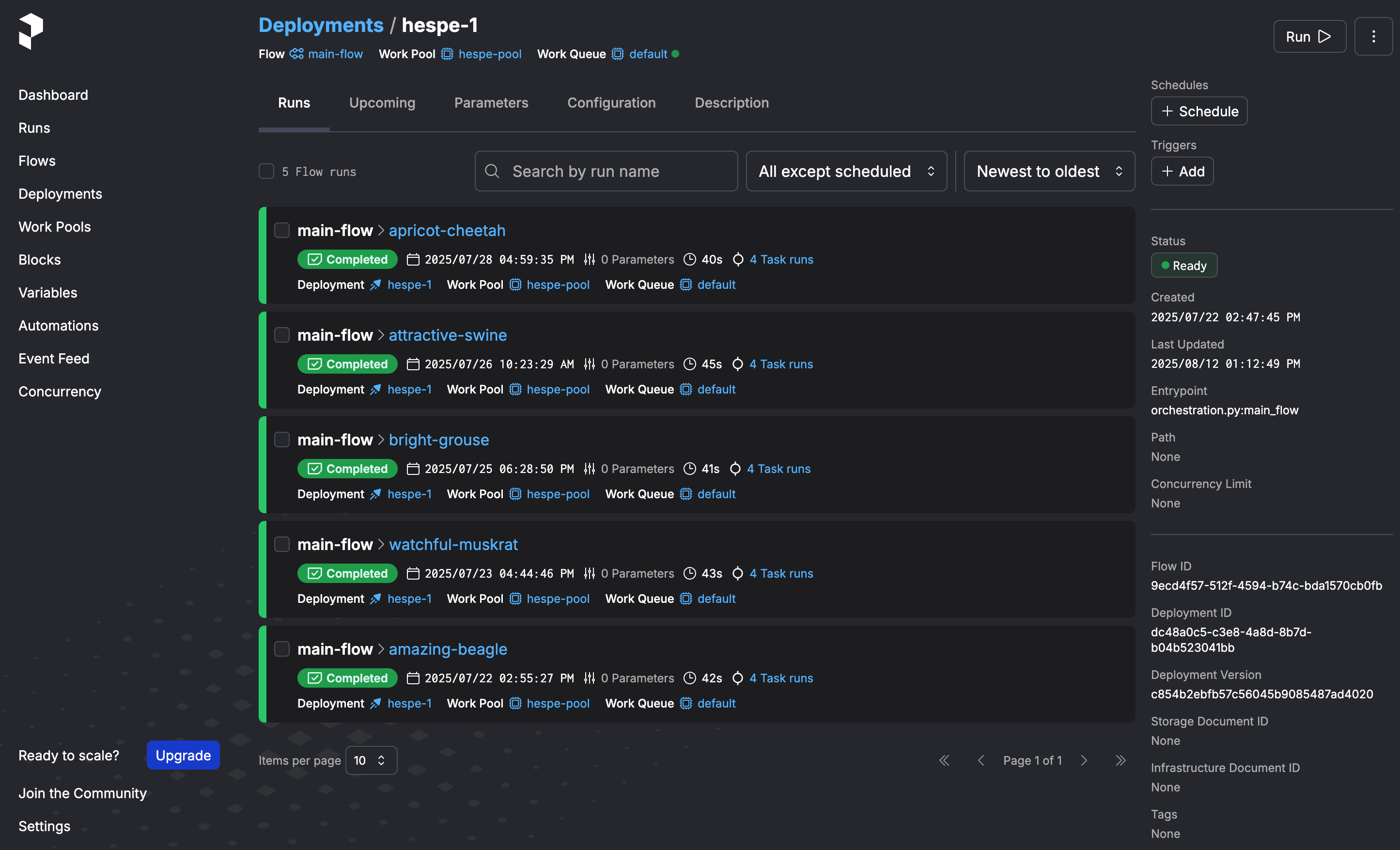

Here are deployments saved over the past 30 days and saved in the Prefect work pool.
You can also run the deployment in the Prefect UI with the Quick run button. If you still have MLflow up and running in its original terminal tab, it’ll get updated with new runs from the command run previously.
Monitoring with Evidently AI #
I’ve implemented local monitoring using Evidently (version 0.6.7). The data for the monitoring is saved in the monitoring folder. I prepared two dataframes, one for the production dataset and one for the reference dataset, and compared the two using Evidently. The data preparation is made with data_preparation.py script, while the monitoring is taken care of withdata_report.py script. The output from data_report.py is saved in the data_drift_report.html and data_stability_report.html files, which can be easily viewed in any browser.

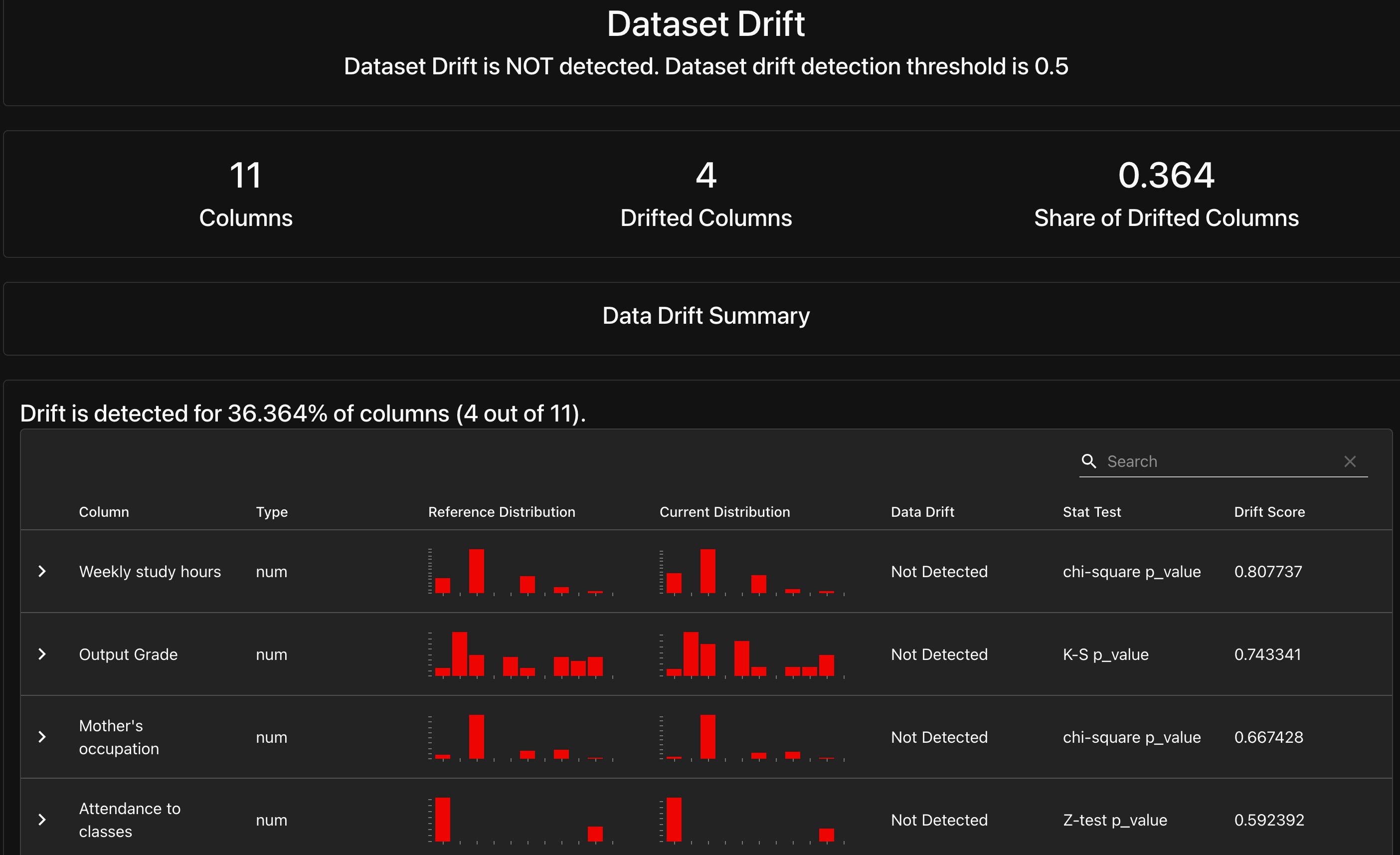

The first four entries of the data drift summary in Evidently.
As for Evidently monitoring, this is taken care of with the monitoring.py script. In order to save the data results and view then in a dashboard in Grafana, with the terminal in the monitoring folder, launch Docker with the command:
docker-compose up --build -d
Since the detached-state -d flag is used, in the same terminal you can run the script:
python monitoring.py

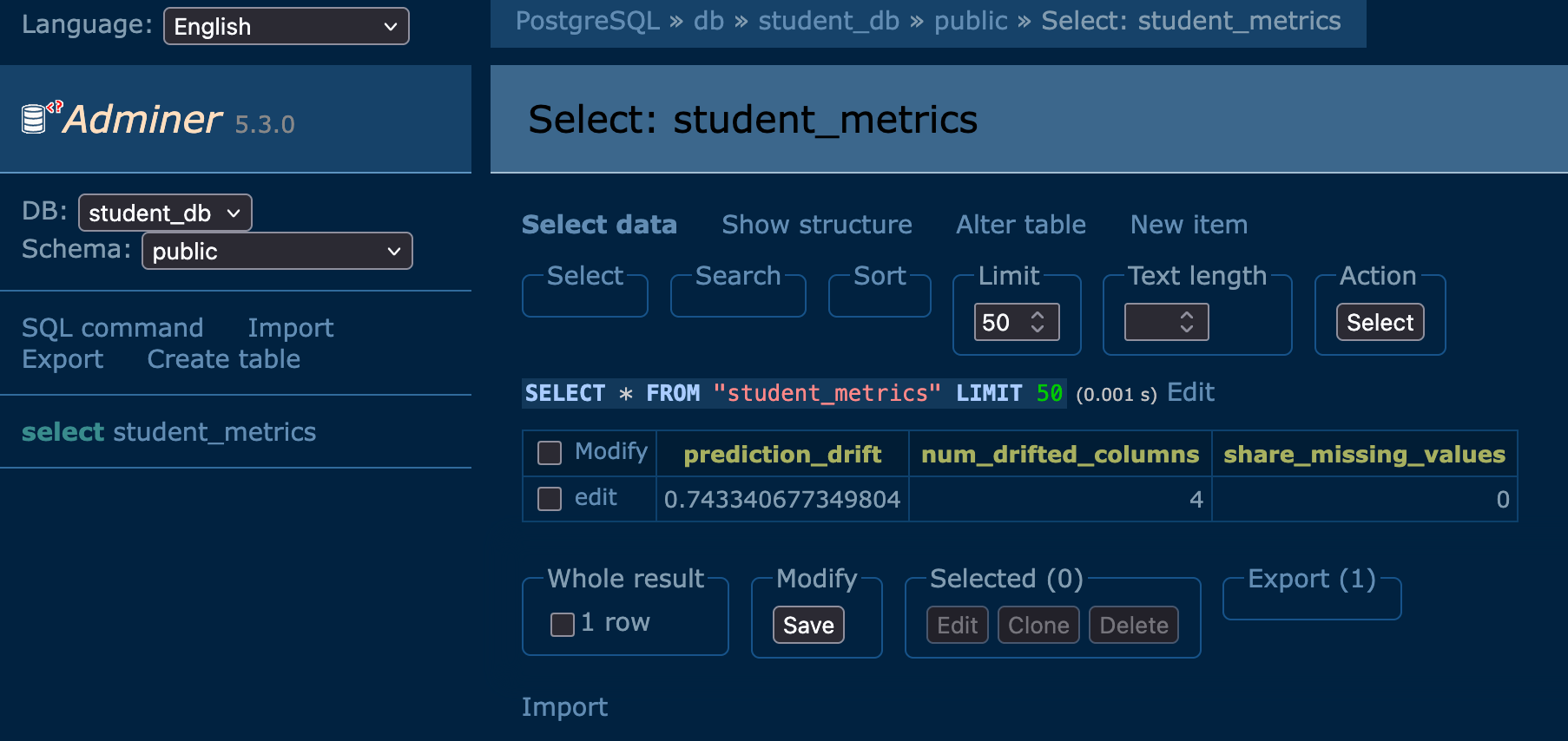

The single entry for prediction drift, number of drifted columns and share of missing values in Adminer.
Make sure to run the monitoring script before viewing the data in Adminer or Grafana, which you can access in your browser at http://localhost:8080 and http://localhost:3000 respectively, because prior to running the script there is no database, table and data in Adminer. The data can be viewed in a dashboard in Grafana as a data table.

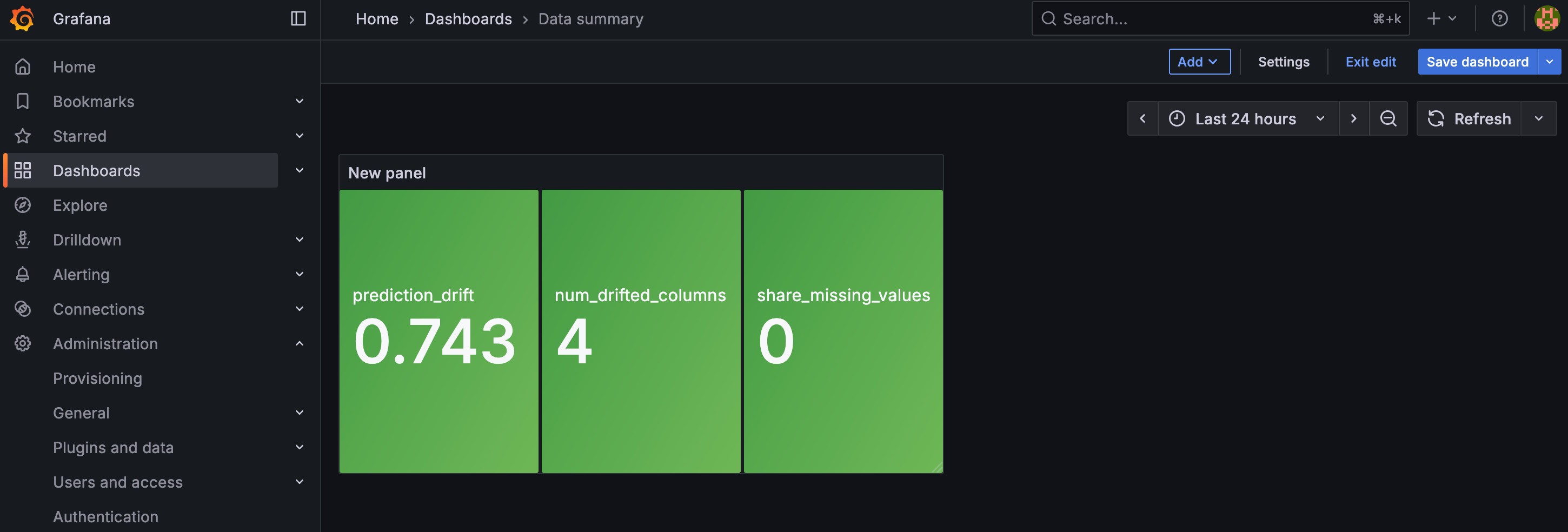

Here is the table of the prediction drift, number of drifted columns and share of missing values in Grafana.
Best practices #
Unit tests with Pytest #
In the best-practices folder create a virtual environment by running pipenv install. You need to have Pytest installed in the virtual environment, so make sure it’s there otherwise run pipenv install --dev pytest. If you use VSCode make sure you choose the best-practices interpreter as the virtual environment.
In the tests folder there is a predict-test.py file that you can do unit testing on using Pytest. The test_predict method checks to see if the output from a test entry of student data returns the expected prediction. This can be easily verified in VSCode.
Integration test #
Go into best-practices/integration-test and run the run_test_integration.sh script. The Bash script requires that Docker is up and running.
> bash run_test_integration.sh
After building the Docker image, it should output the prediction from the student sample data contained in the event.json file as the response text, with the grade prediction.
# Lots of Docker build messages...
[+] Running 2/2
✔ Network integration-test_default Created
✔ Container integration-test-backend-1 Started
Response text: {'grade': 5.0}
Status code: 200
[+] Running 2/2
✔ Container integration-test-backend-1 Removed
✔ Network integration-test_default Removed
Code quality using linting and formatting #
Added a pyproject.toml file to suppress several warnings, such as missing-module-docstring, missing-function-docstring, and invalid-name.
Makefile #
Makefile for test (pytest tests/) and quality checks with isort, black and pylint.
